Deckmount Portable Oxygen Concentrator

• Dual Flow Settings: Pulse & Continuous

The pulse oxygen concentrator has dual-mode operation, offering Pulse Mode (1-5 settings) for on demand oxygen and Continuous Mode (6th setting) for steady oxygen flow, ensuring effective respiratory support.

• Ultra-Lightweight & Travel-Friendly

Designed for convenience, this pulse oxygen concentrator weighs just 1.45kg (device) + 0.45kg (battery), making it easy to carry for travel, outdoor use, or daily mobility.

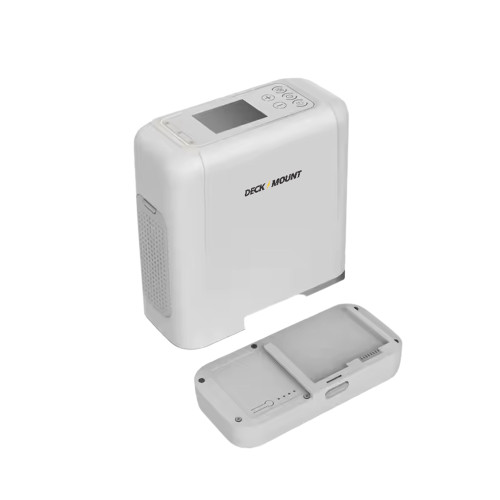

• Detachable Lithium-Ion Battery for Extended Use

With a battery life of up to 4 hours in a single charge and a quick 2.5-hour recharge time, this pulse oxygen concentrator ensures uninterrupted oxygen therapy wherever you go.

• Medical-Grade Oxygen Purity

Delivers ≥90% oxygen purity across all settings, providing high-quality oxygen support whenever needed.

• Multiple Safety Alarms

Equipped with smart alarms for low battery, no breath detection, and system errors, offering secure operation.

• Humidification for Enhanced Comfort

The built-in humidification feature provides moist oxygen, helping to prevent nasal irritation, throat dryness, and discomfort.

• Warranty

The Pulse Oxxygen Concentrator comes with a 1-year warranty on the device and 3 months on the battery ensuring long term service support.

Dimension: L*W*H 15.0cm*7.5cm*16.0cm

Gross Weight: Machine Weight 1.1Kg Battery Weight 0.3Kg

Warranty: 1 Year on Device, 3 Months on Battery

AC Power Source: AC100-240V 50/60 Hz 60VA MAX

Audio alarm: ≥45dB(A)

Battery charging time: 2.5h

Battery duration: 4~1.5h

Conforms to Standards: IEC 60601-1-1 , IEC 60601-1-2 , IEC 80601-2-12 ::: Class 2 (double insulated, Type BF, Ingress Protection IP22)

Gear setting: 1 2 3 4 5

Interface: 2.8" Monitor

Internal battery: 14.8VDC 4A Max

Max outlet pressure: 100KPa±20%

Operating noise: ≤60dB (A) (Gear 5)

oxygen concentration: ≥90 % (At all gears and Respiratory Rates)

Respiratory rate: 10-40 BPM

Respiratory sensitivity: ≤0.12 cmH2O

Sea level: 5000 - 6000M Normal Use

Suitable environment: Temperature 5~40 , Humidity 10 90 Non Condensing State , Atmospheric Pressure : 540hPa~1060hPa

Warm-up time: 3min
